Brand Name : | FillPack |
Model Number : | FP-120 |
Certification : | CE. ISO9001 |
Price : | 9600USD |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 20 sets/month |
Delivery Time : | 15-20days after deposit receipt |
Semi Automatic Plastic 5 gallon bucket blowing machine For drinking water
5 gallon bucket blowing machine Specifications:
1. PET bottle blowing machine with 1 Cavity
2. Suitable for 15~20L bottles
3. Blow PET or PP bottles
4. Capacity: 120BPH
Type | Item | Unit | Parameter |
Suitable Product Material | PET | ||
Number of cavity | CAVITY | 1 | |
Bottle Volume | L | 20L | |
Theoretical Output | BPH | 120 | |
Max Container Height | MM | 400 | |
Max Container Diameter | MM | 130 | |
Max Mouth Diameter | MM | 110 | |
Mould | Max Mould Plate Dimention | PCS | L420xW640 |
Max Mould Thickness | MM | 400 | |
Clamping Force | KN | 100 | |
Mould Opening Stroke | MM | 380V/50Hz | |
Blower and Heater | Blower size(LxWxH) | CM | 220x72x200 |
Blower weight | KG | 1500 | |
Blowing pressure | KG | 20-30 | |
Acting pressure | KG | 8-10 | |
Heater LxWxH | CM | 270x65x165 | |
Heater Weight | KG | 560 | |
Rate Capacity | PCS/MIN | 18-25 | |
Preform Mouth | MM | 55 | |
Voltage | 380V/3Phases/50-60Hz | ||
Motor Power | KW | 25 | |
Max Heating Power | KW | 14 |

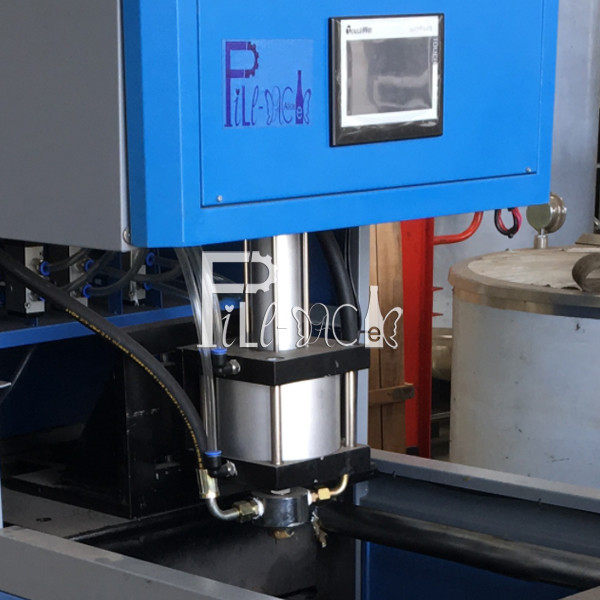

Machine Detail of 5 gallon bucket blowing machine
![]() |
