120BPH 24008001600mm 18.9L Gallon Bottle Blowing Machine

Semi auto gallon bottle blow machine for producing 18.9L water bottle

3-5 gallon bottle blow machine Main Features:

1. Adopting double crank to adjust mould, heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform, the preform rotated and heated equally.

2. The air system has been divided into two parts: physical movement of machine and blowing movement. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.

3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

4. The machine can be operated in the step-by-step mode and the semi-auto mode.

5. The machine is small with low investment, easy to operate.

3-5 gallon bottle blow machine main Parameter:

Model	FP-120
Production Capacity	80-120BPH
Dimension for oven	26206701600mm
Dimension for blow machine	24008001600mm
Total power	15kw
Total weight	900kg

120BPH 2400*800*1600mm 18.9L Gallon Bottle Blowing Machine

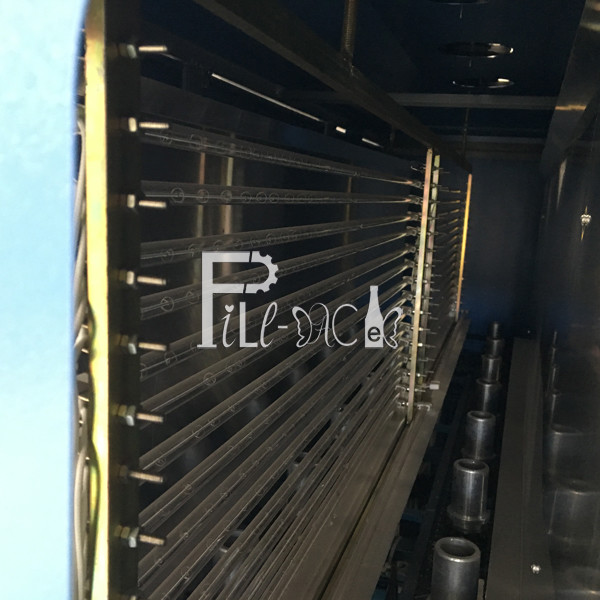

The Infrared Lamp
1. 16 layer heating tunnel. Total 34 pieces heating lamp.
2. Each layer of lamp controlled independently,suitable for different kinds of preform.
3. Power of each lamp: 1 Kw

120BPH 2400*800*1600mm 18.9L Gallon Bottle Blowing Machine

The Temperature Control System
1. Control the temperate of the lamp.

2. Control the rotary speed of the whole heater .

120BPH 2400*800*1600mm 18.9L Gallon Bottle Blowing Machine
